Juan Apartment



PROJECT GENERAL INFORMATION



Name: Juan Apartment

Location: Semnan, Iran

Architecture Firm: L.E.D Architects []

Architect in Charge: Shahab Mirzaean

Design Team: Mohammadebrahim Tajik,Omid Mohammadi,Hosein Zein Aghaji,Kasra shafieezadeh,Mohsen Khanmohammadi,Alireza Houbakht, Amirsiavash Ghorbani

Date: 2012 - 2016

Site Area: 300 sqm

Ground Floor Area:170 sqm

Built Area: 680 sqm

Type: Residential

Civil engineering: Eng. Jami

Mechanical: Mehdi Barghi

Electrical: Mohammad Bozorgnia

Photographer: Hamoon Moghadam

Client: Dr. Saman Farokhi

Award: Finalist in Memar Award , in the section of residential apartment category, 2016

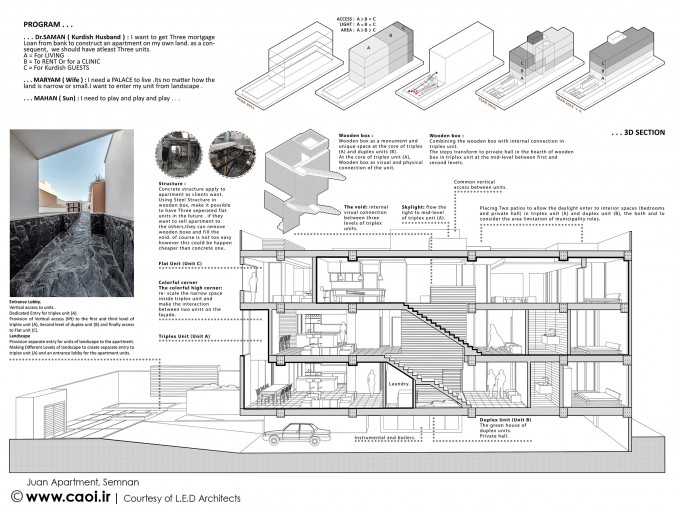

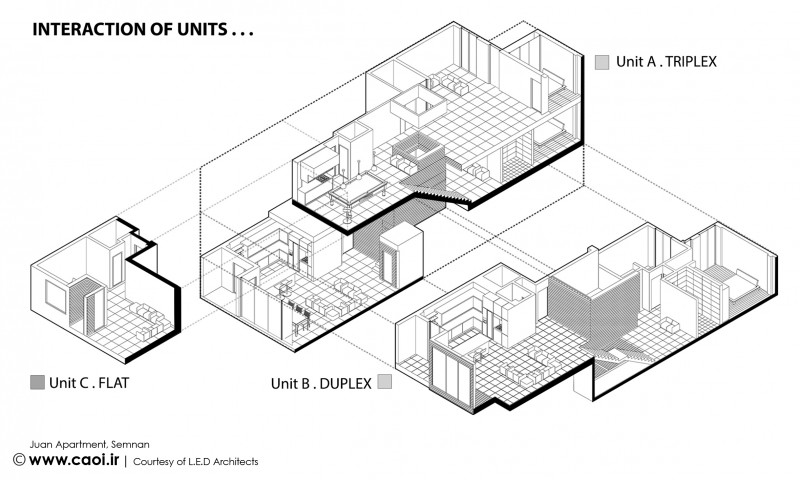

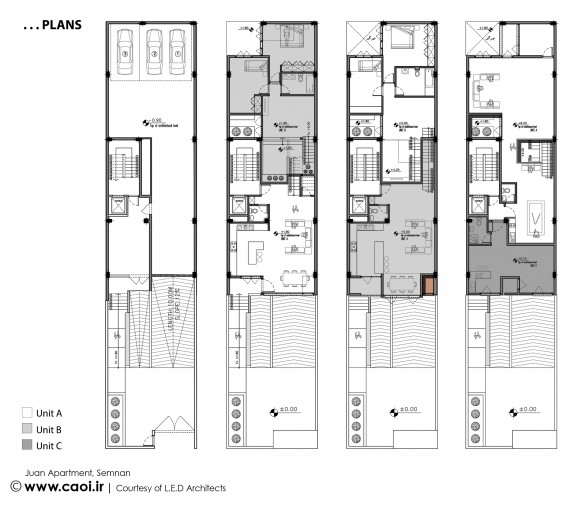

The client demanded a design for a residential apartment in 3 storeys, located in a middle-class district of Semnan city. With respect to negotiations with the client and in order to create a maximal usable area, the design switched from an ordinary apartment block of two separate units to two separate triplex and duplex units, because the client was interested in level differences in one single unit.

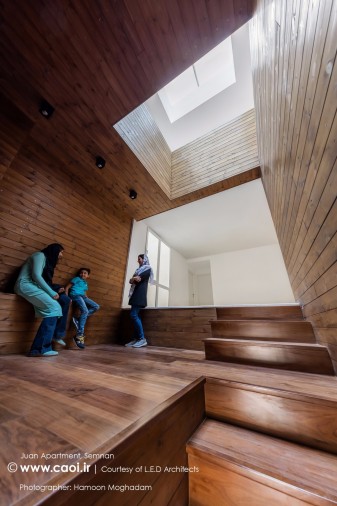

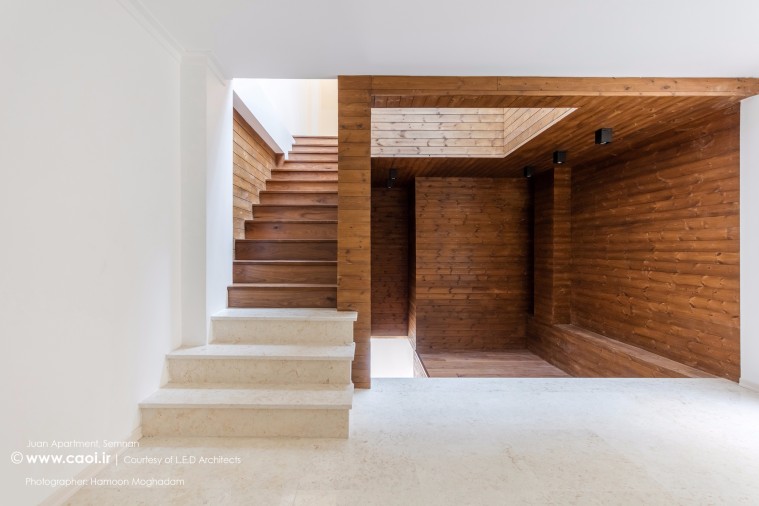

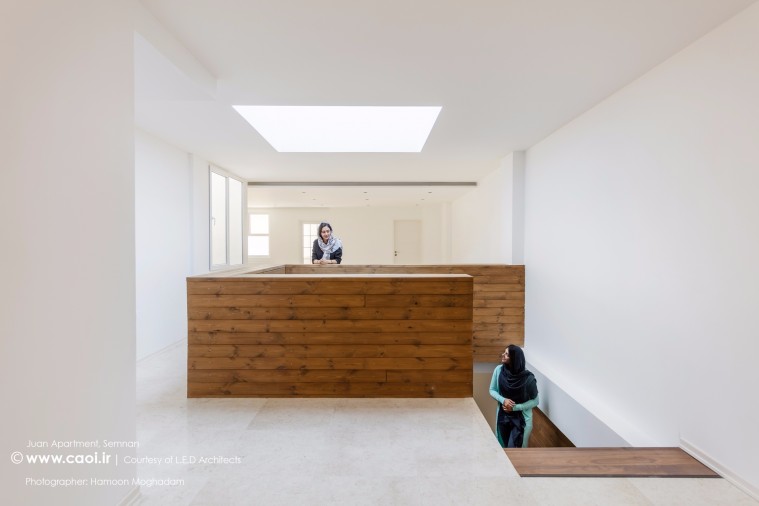

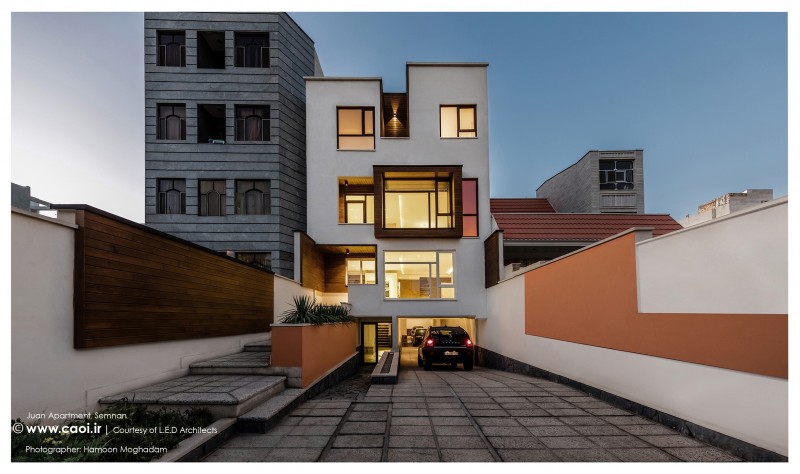

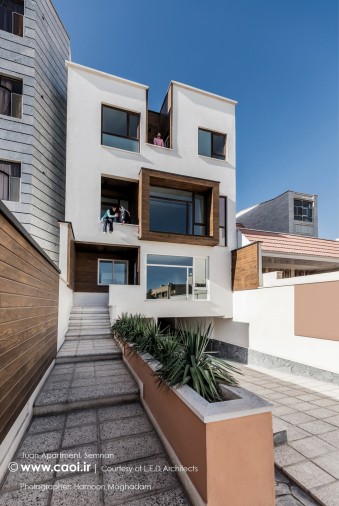

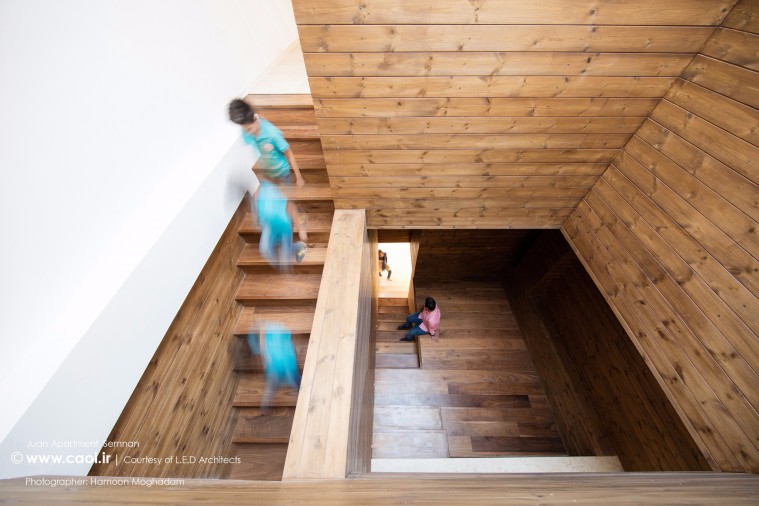

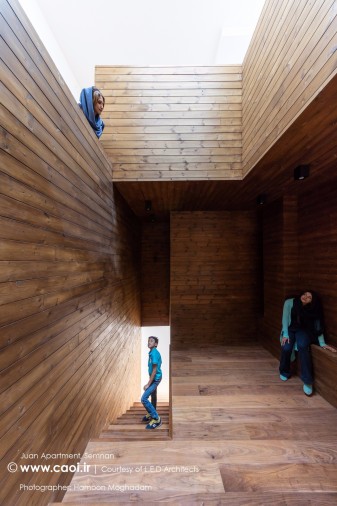

These two units were combined together on the main façade, letting maximum natural light in from the street. In the triplex unit, a central void was placed in the heart of the building to connect all the spaces together and to make all the spaces visible from there. The public and private spaces were also separated from each other by this void.
