Narenjestan Office Building



PROJECT GENERAL INFORMATION



Name: Narenjestan Office Building

Location: Narenjestan 3th Alley,Pasdaran St, Farmaniye,Tehran

Architects in Charge: Peyman Meydani, Behzad Ayati

Design Associates: Mahboobe Yousefi Khah, Parihan Rashidi, Mohsen Haghoarast, Andishe Ghofrani

Date2012 - 2014

Site Area: 209 sqm

Built Area:  1044 sqm

Building Type: Office Building

Structural Consultant: Eng. Amin Abdi

Mechanical Consultant: Eng. Behtash Ayati

Electrical Consultant: Eng. Ali ajdari

Constrcution Company: Bo’de Chaharom

Executive Manager: Mehdi Jamali

Executive Team: Farzin Rahmani, Hamid Golpari, Hossein Bakhshi

Photographer: Marjan Yazdi, Peyman Meydani

Awards: Honorable Mention in Memar Grand Awards, in the public Buildings category - 2014



Design Statement of Narenjestan project(Weaved linear)

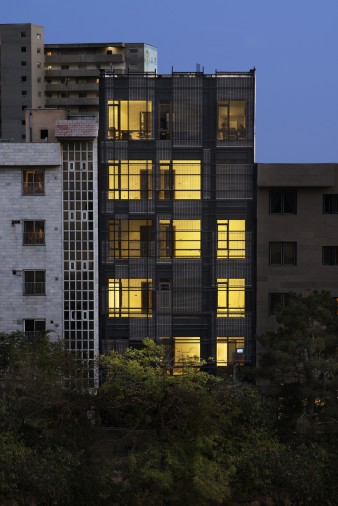

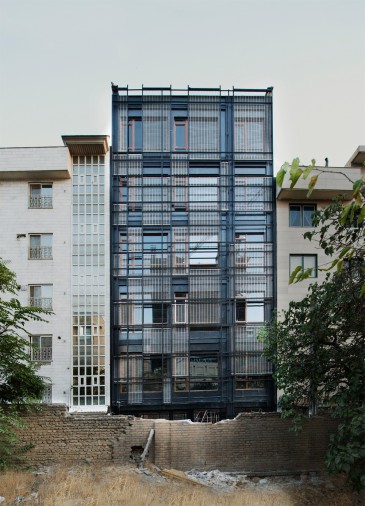

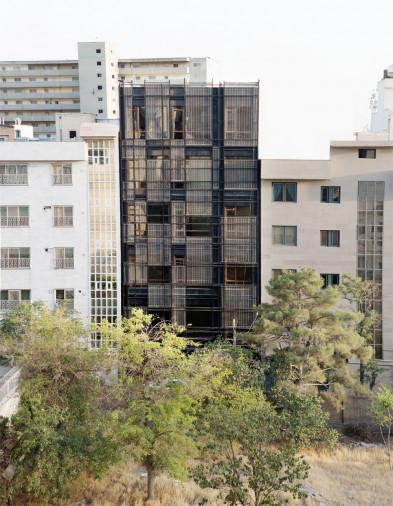

Located in third Narenjestan alley near Pasdaran Street, Narenjestan building belongs to one of those blocks which stands in a straight line without any back or front strain. According to municipal lows and narrow width of allay, no strain was an obligation. Producing a responsive façade to the building requirements which simultaneously does not disturb the urban context, is always one of architect’s goals. In Narenjestan project architect has a challenge; while the width of building is not eye catching, the client wants the maximum usage of building area so there is not any opportunity to build a Façade with any solid combination; thus the exterior face of building is a part of flat surface with the length of allay and height of surrounding buildings. Observing no written role of façade designing, not to produce any chaos in urban context, the architect decided to put this project a place of unifying the surrounded inconsistency.

Narenjestan building is located in 8 meter width alley with a combination of various type of design with lots of materials and construction methods which resulted in situation that is called chaos. Preparing a harmony between the different types of orders and styles around the building is the main idea of design. Playing among the different notes is neither silence nor inactivity, because the new playing is a new music in this area Because of the architect’s efforts to preserve the structure of building it is needed to use a material which acts like a medium to harmonize the project necessities and neighboring buildings. From the architect’s perspective, the only response is a surface which stretches in the outer face of building. The horizontal and vertical elements of the façade are coming from the main linear elements of neighboring buildings.

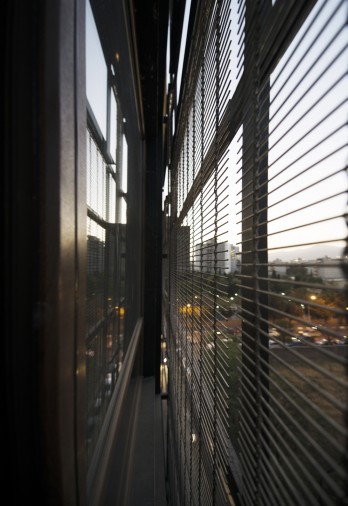

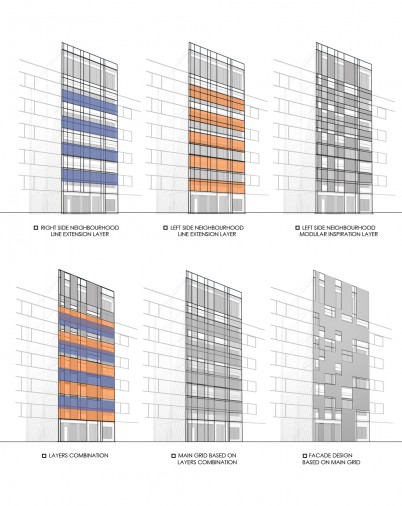

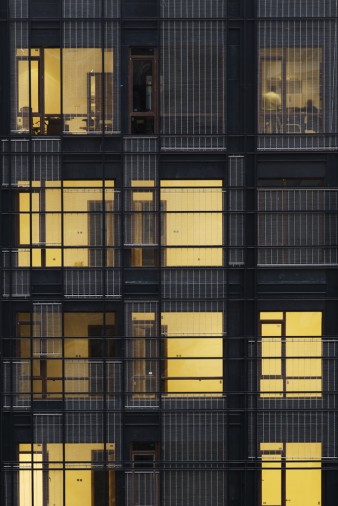

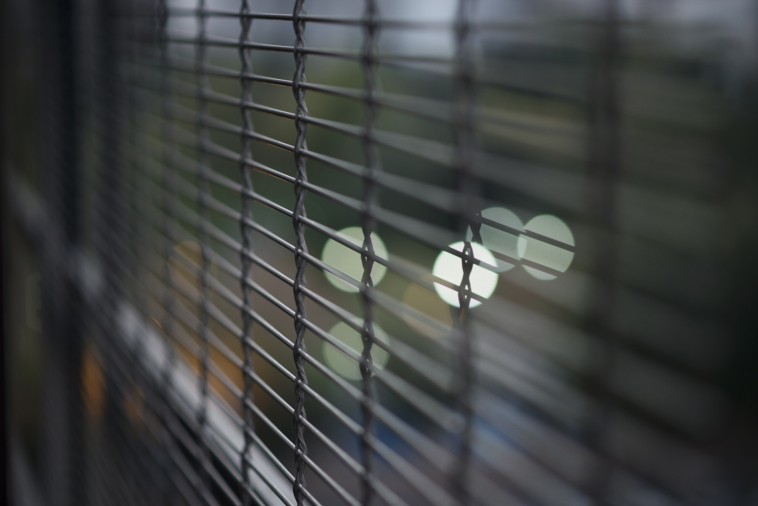

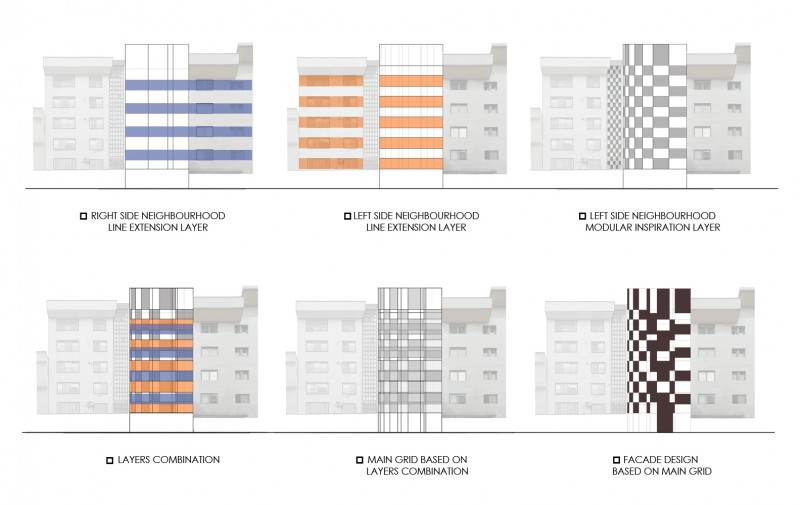

As a result the surface is indebted of the context and it is a place to moderate the linear combination of surrounding area and the requirements of the building. The façade has been produced from the interaction of three layers, two layers from the each of surrounding context and the third from the building itself.  Realization of this concept is achieved by the usage of transparent and semitransparent materials. Combining the three mentioned layers, the façade organization is produced like a chess board net which is rescaled in some units according to the neighboring context. Finally the design efforts leads the architect to a semitransparent surface which not only is a kind of repose place but also coordinates the surrounding context.

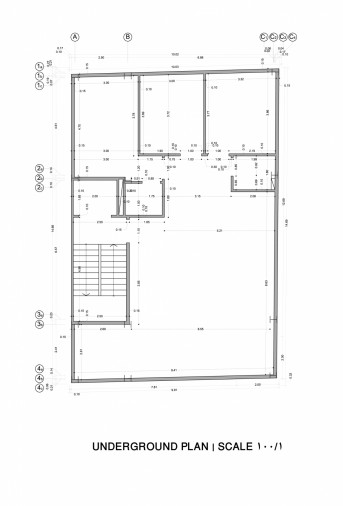

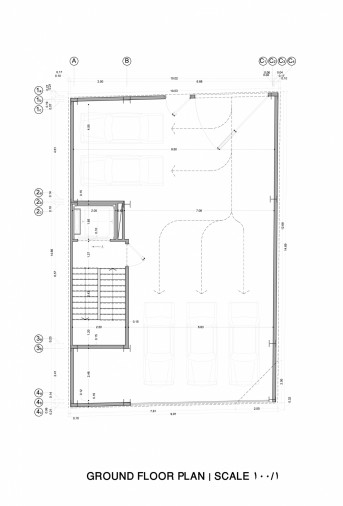

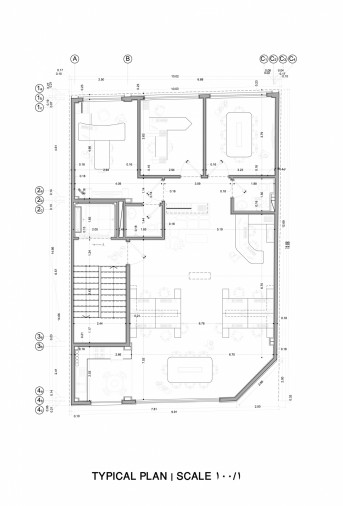

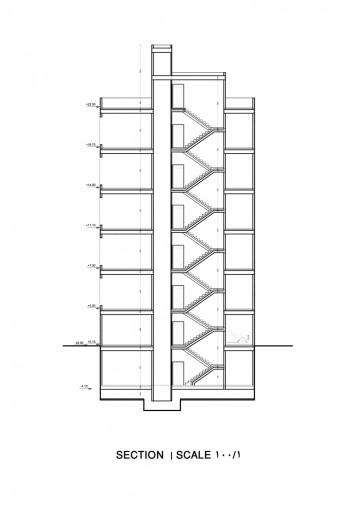

Narenjestan project is designed in 7 floors; containing five official floors, one parking floor and gathering saloon plus storages which locate in the underground floor. Each floor has 149 m2 area thus the total building area is 1044 m2. Project benefits from the steel structure system and VRF utility system.
